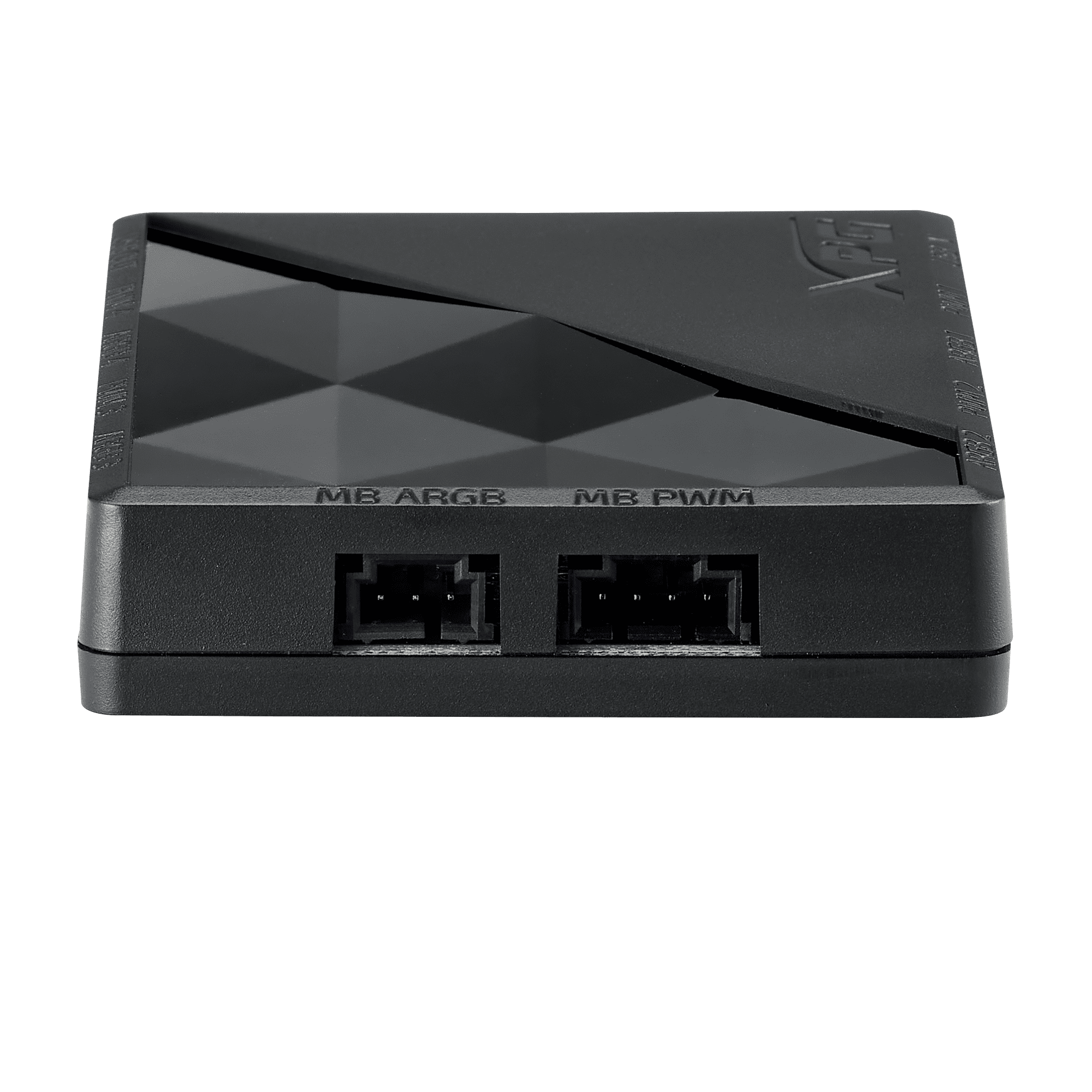

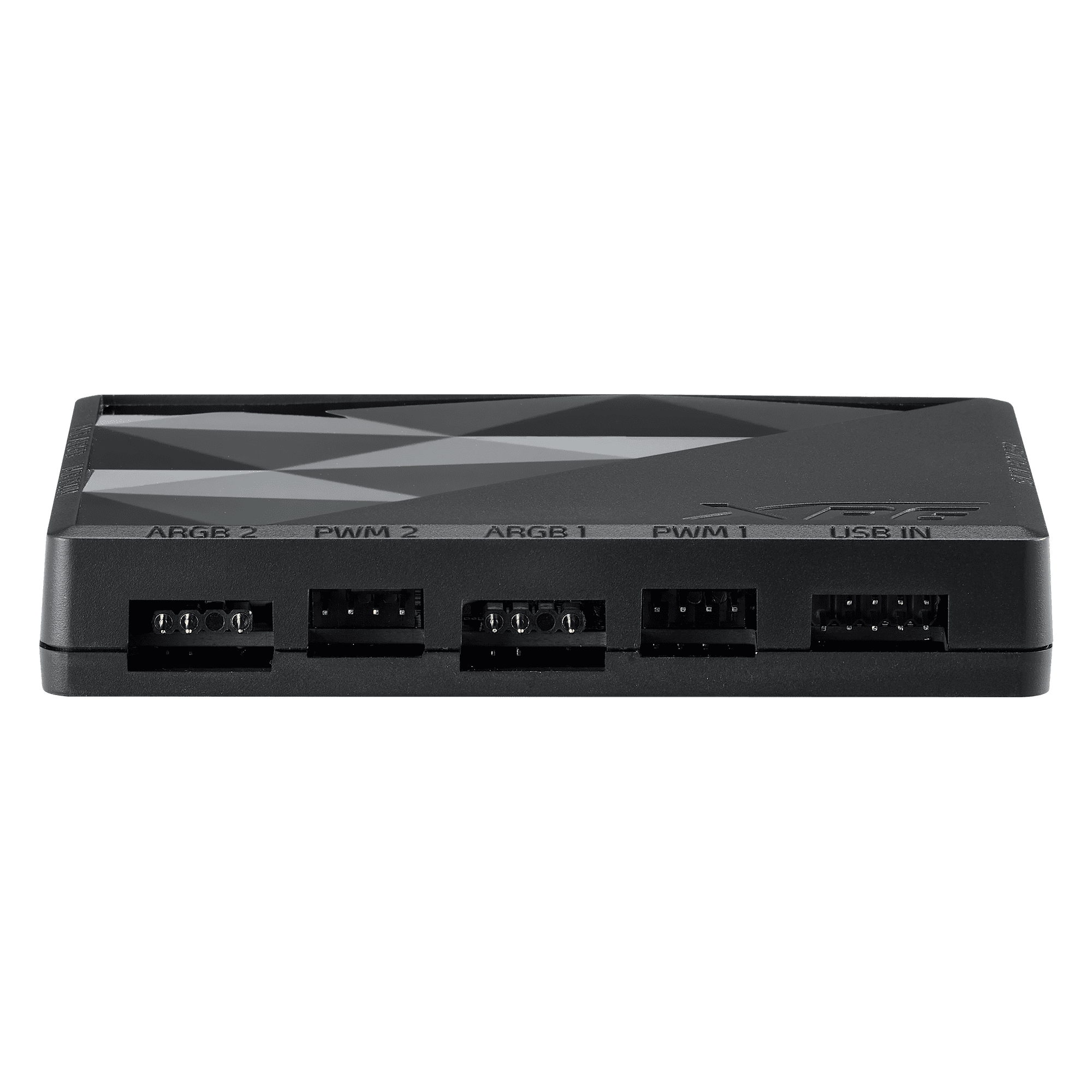

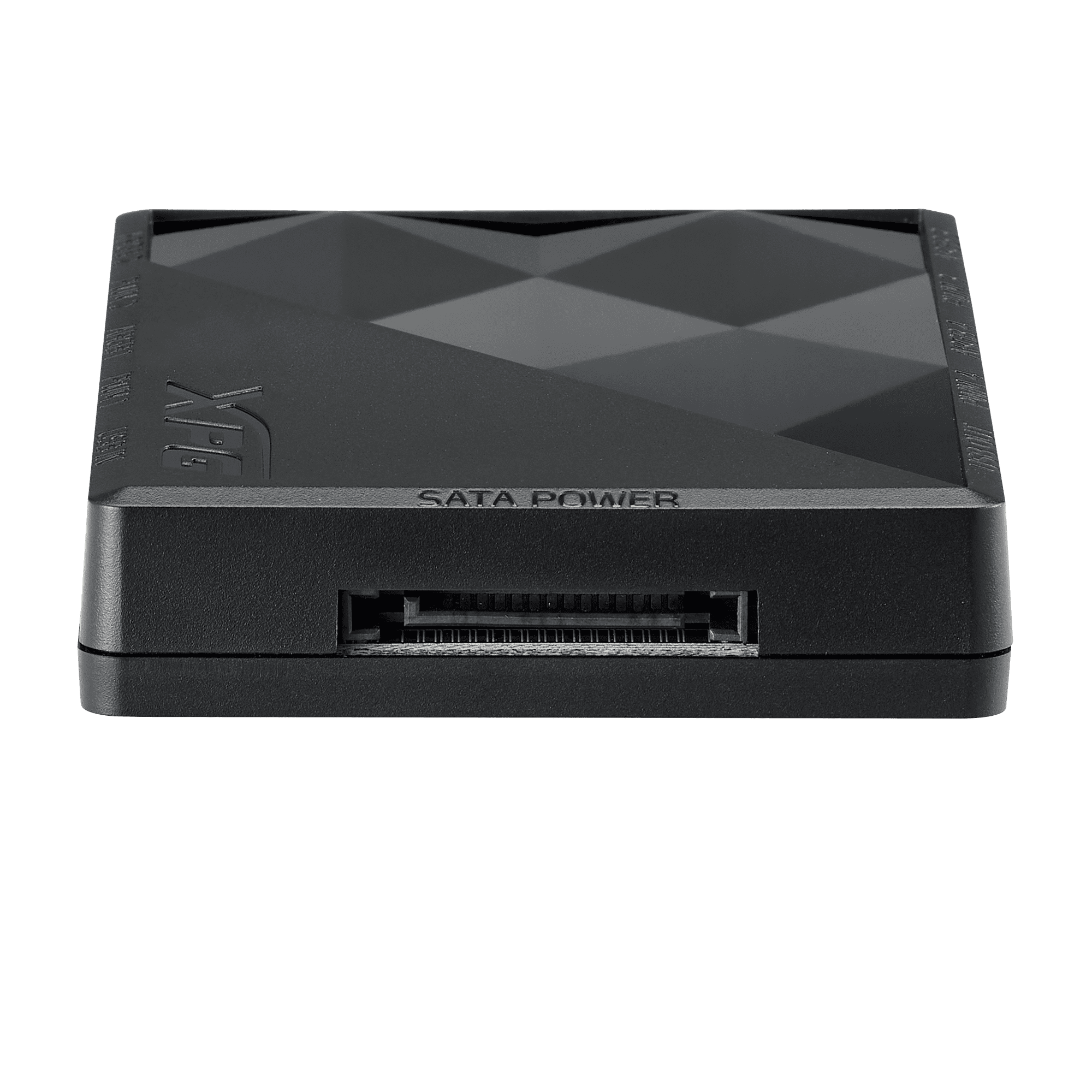

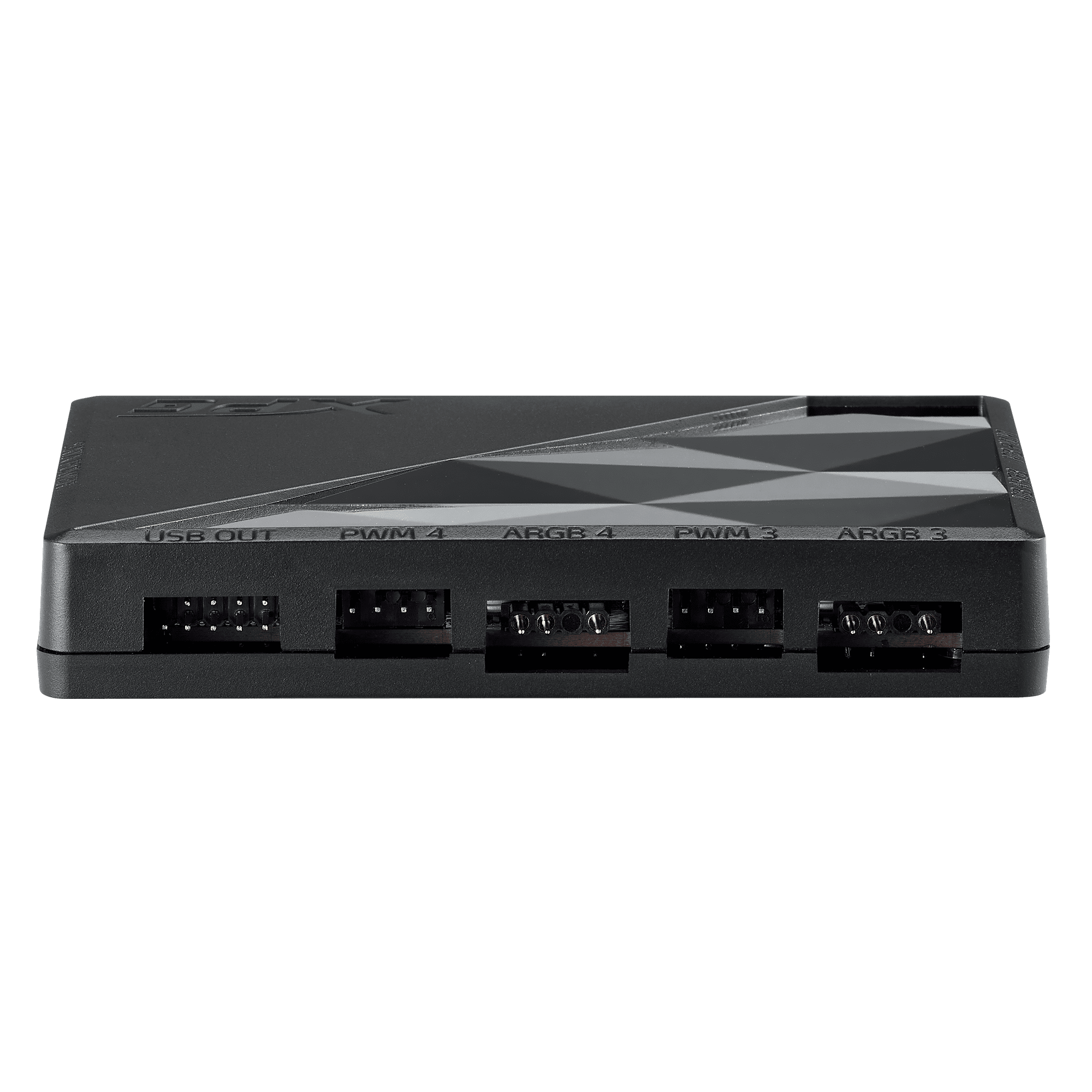

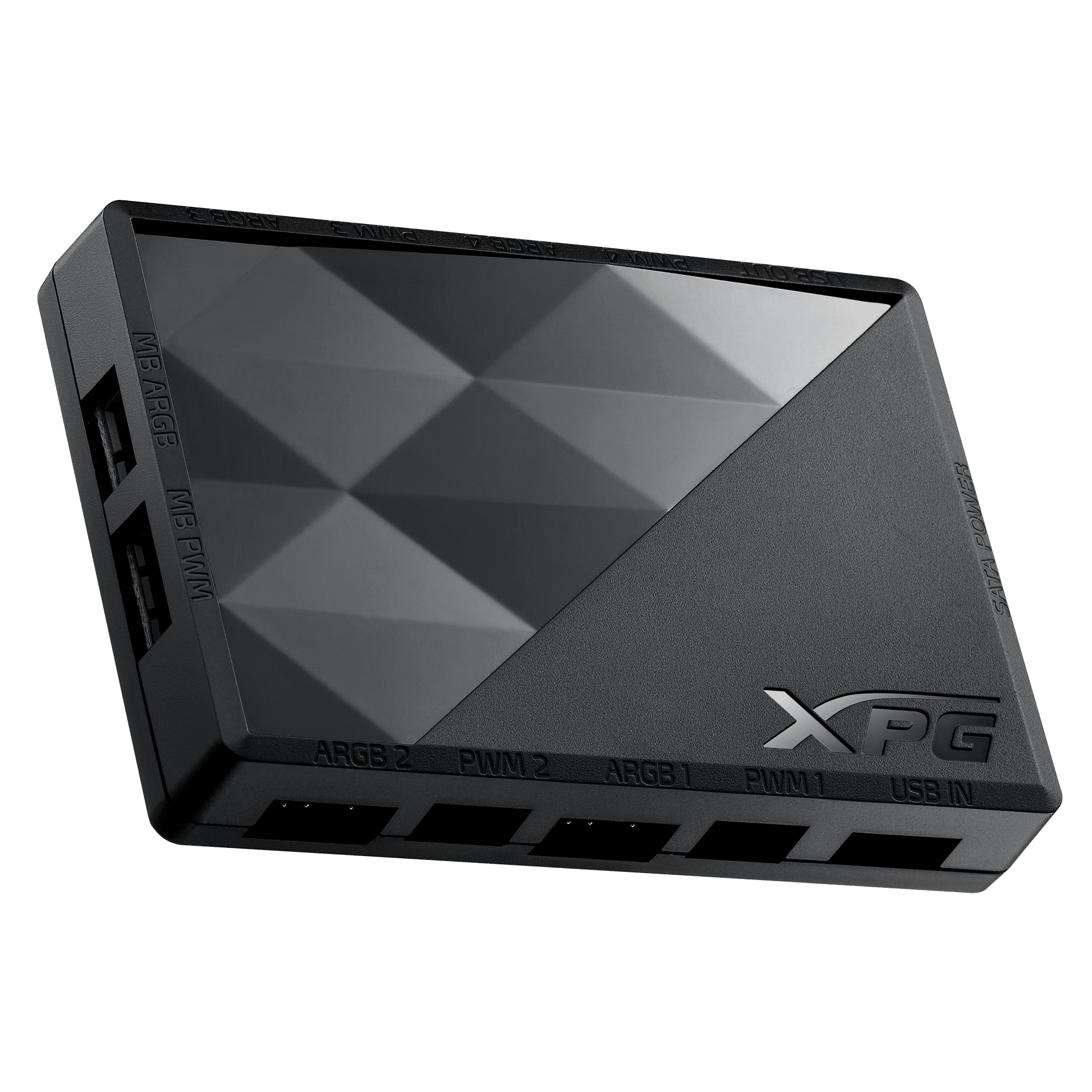

PRIME BOX ARGB & PWM CONTROLLER

  • 4 PWM control ports support precise PWM control.
  • Each ARGB port supporting up to 80 LEDs.
  • Powered by PRIME Software, supporting ultimate customization.
  • Embedded magnet design for easy installation.
  • Compact size: 100 x 68.24 x 18mm.
$29.99
DESCRIPTION
Control Everything*
The XPG PRIME BOX not only grants you access to a powerful customization tool for personalized control of all your ARGB components, but it also allows you to expand your RGB Ecosystem and take control of all PRIME supported devices through the easy-to-use XPG PRIME software.
RGB Lighting Customization
Unleash the full potential of your gaming setup with the XPG PRIME BOX. Not only do you have complete control over all your ARGB components like fans, light strips, and other accessories, but with XPG PRIME software, you can also easily synchronize all compatible components in just a few clicks. Lighting customization has never been more convenient.
Precision PWM Control
With the intuitive control offered by XPG PRIME software, the XPG PRIME BOX allows you to monitor system temperature and make precise adjustments to your PWM speeds with little to no hassle. Additionally, you can create personalized fan curve profiles to optimize overall system performance for different user scenarios.
Easy Installation
The XPG PRIME BOX features an embedded magnet design, making it easy to install on any flat surface inside your case.
*Currently AMD chipsets are showing an issue handling Human Interface Devices differently from other platforms. As such we temporarily had to restrict PRIME BOX on those platforms to synchronize with other devices via Canvas until a new driver is provided. Please note that the main menu and the “Connected Devices” functionality are not affected by the issue, so PRIME BOX still has full functionality available on AMD platform for both Thermal Management and Lighting Control.   PWM FAN PORT: Each header supports up to 4 PWM daisy-chain fans, with a total current of up to 1 ampere per port.   LED ARGB PORT: Each header supports up to 90 LEDs, with a total current of up to 2 amperes per port.
LED Type
Strip Quantity
LED Quantity
Voltage
Power Consumption
Beam angle
Operating Temperature
Magnet
Magnet per strip
LED Strip Length
LED Strip Thickness
LED Strip Width
Color Rendering Index
Flex PCB Quality
Lumen
Adhesive
Control Scheme RGB lighting and fan speed
Dimensions (W x L x D) 100 x 68.24 x 18mm
RGB Channels 4
Fan Headers 4
USB 2.0 Internal Headers 2
USB Connection Internal USB 2.0 (9-Pin)
Power Protection OCP (Over Current Protection)
Control Interface Motherboard or XPG PRIME Software
Software System Requirement Windows 10 or above
Latest version of XPG PRIME software

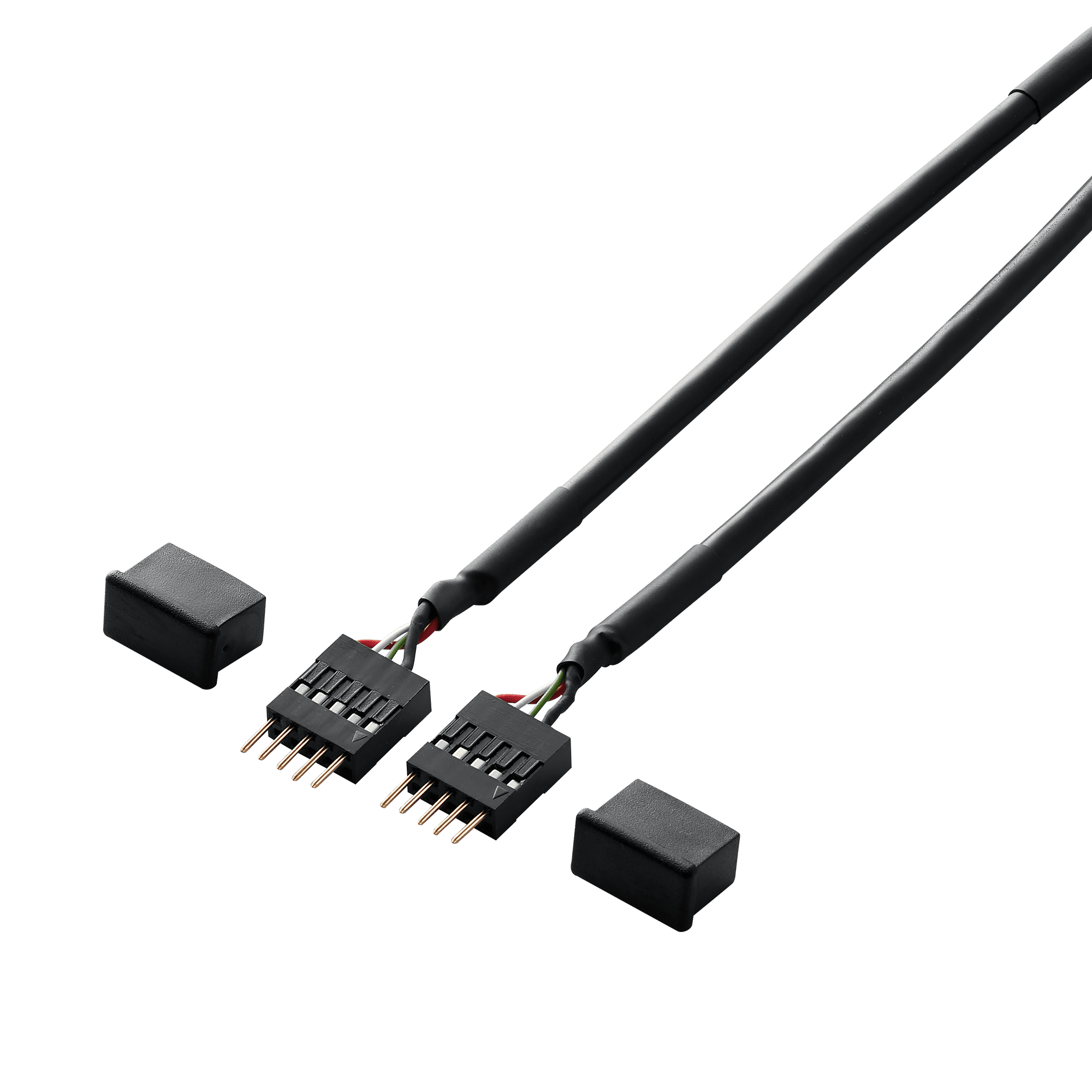

Cable ARGB x 1, PWM (Fan) x 1
USB 1 to 1 (Input) x 1
USB Splitter (Output) x 1
Warranty
Cable Length
Material
Connector
AWG
Compatible to PSU series up from
remark
